多层警示灯(φ100)
LR10

拥有多种警报模式并可以在户外使用的大直径多层警示灯。

  • 输入输出控制
  • M12 连接器
  • 多层警示灯
  • Φ100
  • 常亮
  • 闪烁
  • 爆闪
  • 转灯
  • 蜂鸣
  • 92dB
  • 室外
  • 室内
  • IP66
  • IP69K
  • 绿
  • 多层警示灯(φ100) LR10
  • 多种亮灯模式
    常亮·闪烁·爆闪·转灯

    除了常规警示灯拥有的常亮和闪烁亮灯模式外,还增加了爆闪以及无电机转灯模式。
    可根据用户需求选择最合适的警报模式。
    点击 观看亮灯模式演示视频。

  • 防护等级高达IP66/69K
    无惧恶劣环境

    多层警报灯可达到的最高防水和防尘等级。
    不仅可以在户外使用,在食品工厂等高需求环境也可以放心使用。


    《防护等级》

    IP6X:防尘型(完全防止灰尘进入。)
    IPX6:防止猛烈喷射(从各个方向使用喷嘴强力喷射水流)
    IP69K:试验机在80-100 BAR的水压和14-16升/分钟的流量下通过指定形状的喷嘴排出
        80℃的热水时,不应有进水。此外,测试装置与喷嘴之间的距离为10-15cm,
        在0、30、60和90度的每个方向上放水30秒,同时测试装置在水平面上旋转。

  • 螺丝固定顶盖和蜂鸣器模块可供选购。

    加固螺丝固定顶盖和蜂鸣器模块可使用固定螺丝。
    可以使用预装整灯中使用的螺丝,因此只需更换顶部模块。

 如您需要标准色以外的颜色搭配,请联系您的代理店。

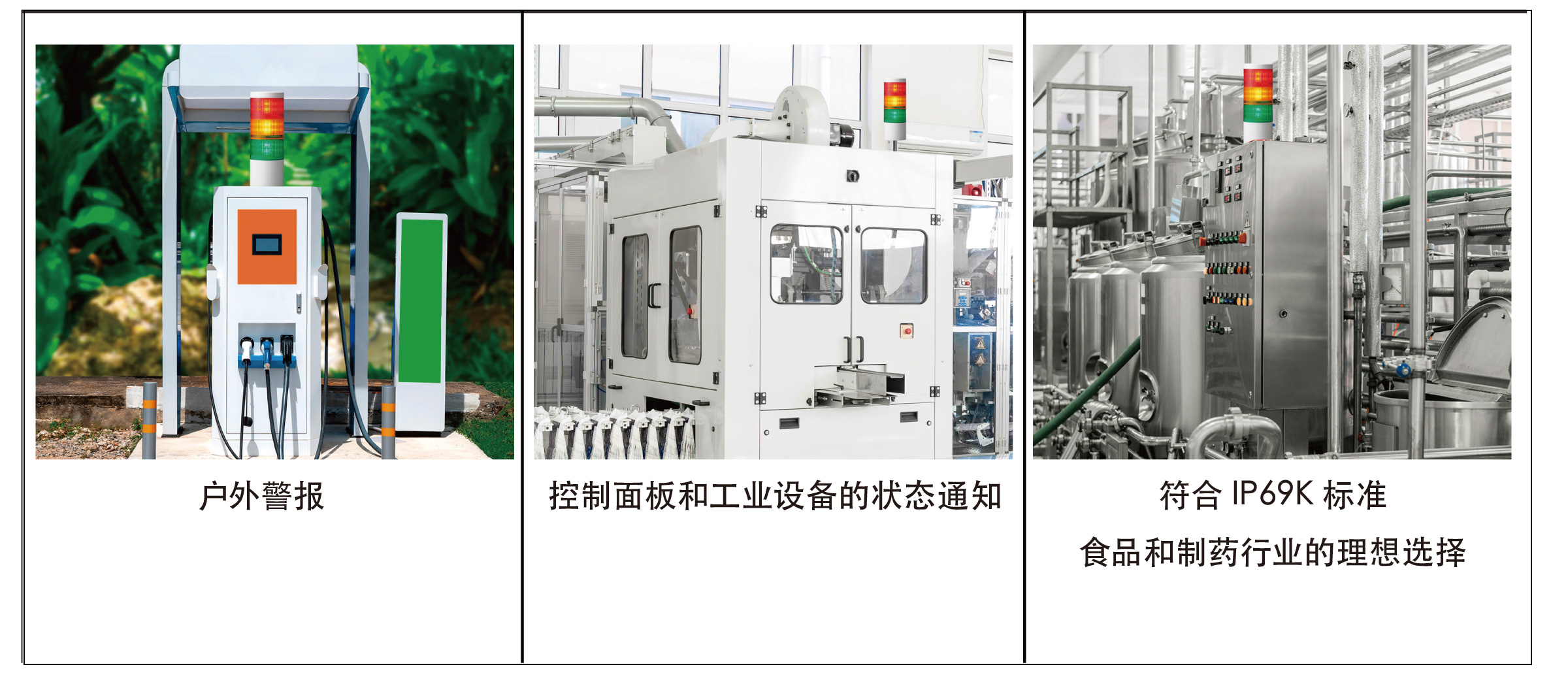

应用






产品列表




产品型号

层数 额定电压 蜂鸣器 亮灯颜色
LR10-102WJNW-R/Y/G 1

直流 24V

无蜂鸣器

红色 / 黄色 / 绿色

LR10-202WJNW-RY/RG 2

红色・黄色 / 红色・绿色

LR10-302WJNW-RYG 3 红色・黄色・绿色
LR10-402WJNW-RYGB 4 红色・黄色・绿色・蓝色
LR10-502WJNW-RYGBC 5 红色・黄色・绿色・蓝色・白色
LR10-1M2WJNW-R/Y/G 1

交流 100-240V

红色 /黄色 /绿色
LR10-2M2WJNW-RY/RG 2 红色・黄色 /红色・绿色
LR10-3M2WJNW-RYG 3 红色・黄色・绿色
LR10-402WJBW-RYGB 4 红色・黄色・绿色・蓝色
LR10-502WJBW-RYGBC 5 红色・黄色・绿色・蓝色・白色
LR10-102WJBW-R/Y/G 1 直流 24V

蜂鸣器

红色 /黄色 /绿色
LR10-202WJBW-RY/RG 2 红色・黄色 /红色・绿色
LR10-302WJBW-RYG 3 红色・黄色・绿色
LR10-402WJBW-RYGB 4 红色・黄色・绿色・蓝色
LR10-502WJBW-RYGBC 5 红色・黄色・绿色・蓝色・白色
LR10-1M2WJBW-R/Y/G 1

交流 100-240V

红色 /黄色/绿色
LR10-2M2WJBW-RY/RG 2 红色・黄色 /红色・绿色
LR10-3M2WJBW-RYG 3 红色・黄色・绿色
LR10-4M2WJBW-RYGB 4 红色・黄色・绿色・蓝色
LR10-5M2WJBW-RYGBC 5 红色・黄色・绿色・蓝色・白色
LR10-302WMNW-RYG 3 直流 24V
(M12接口)

无蜂鸣器

红色・黄色・绿色
LR10-02WJNW 0 直流 24V

无蜂鸣器

无LED模块

LR10-M2WJNW 0

交流 100-240V

无蜂鸣器

无LED模块
LR10-WMNW 0 直流 24V
(M12接口)

无蜂鸣器

无LED模块

(*)本网站上数据的下载服务被认为已同意以下“”。

(*)本网站上数据的下载服务被认为已同意以下“”。

LR10  

LR10  

更换零件

分类 No. 名称 零件编号 数量 规格 更换的大致时间

																顶盖
GA0001577-F1 1

																防水墊
GA0001587-F1 1

																垫圈
GA0001588-F1 2~7  随层数变化
