- 内置敲落孔使得将 LR5 或 LR7 系列信号塔从杆柱安装转换为直接安装变得容易。

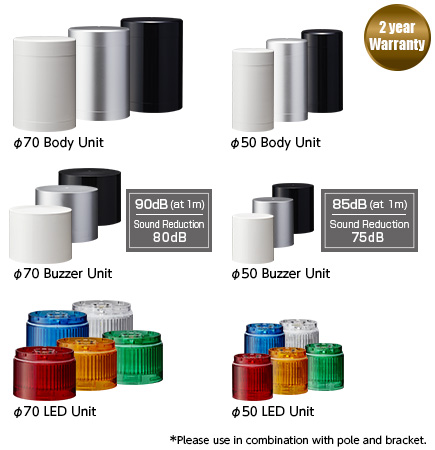

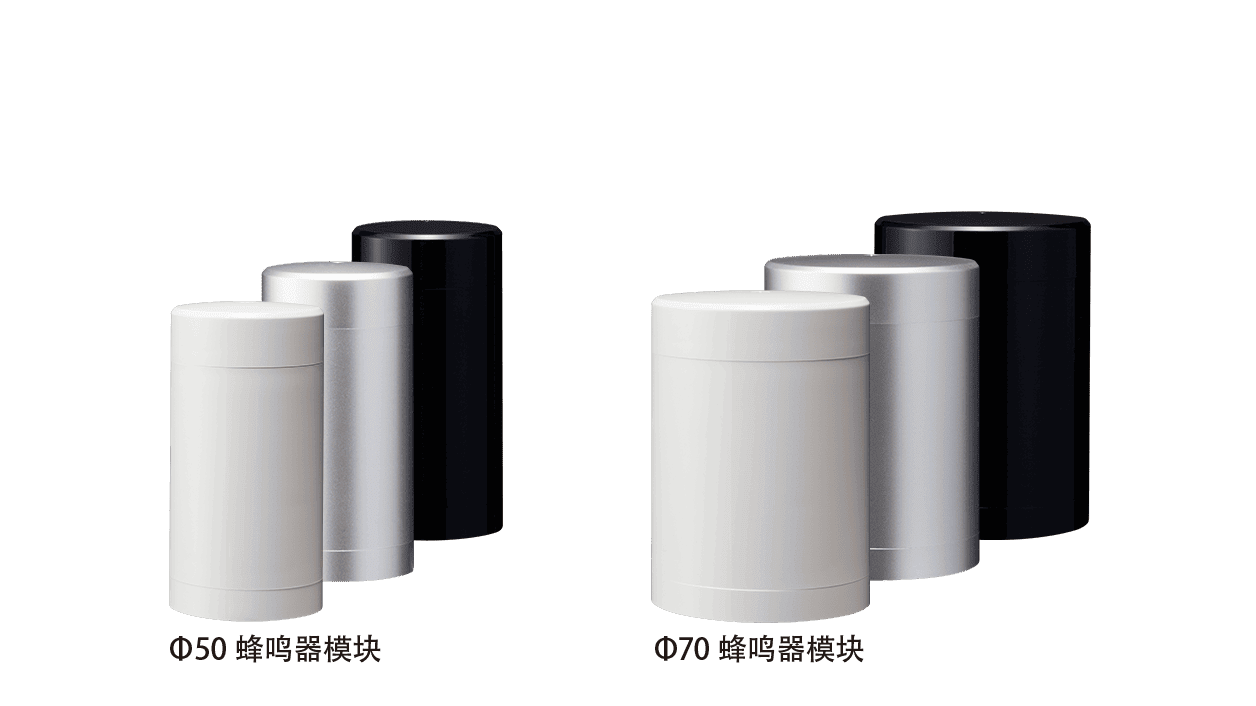

- 备有纯白色, 银色和黑色机身选项。
|工作环境温度||-20℃ - +50℃|
|操作湿度范围||90% RH 或更小，无冷凝|
|存储温度范围||-30℃ - +60℃|
|存储湿度范围||90% RH 或更小，无冷凝|
|防护等级*1||IP65(IEC 60529) / NEMA TYPE 4X, 13|
|绝缘电阻||电源输入引线与机箱之间 DC500V 时大于 1MΩ|
|耐受电压||端子与机箱之间 AC 500V 1 分钟，不破坏绝缘（M2：AC1500V 1分钟）|
|蜂鸣器声音||4 种模式*2 第 1快速间歇声音 第 2连续声音 第 3快速高低音 第 4掠过声音|
|晶体管输出||NPN / PNP|
|符合性标准||●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS 指令 (EN IEC 63000)
●EMC 指令 (EN 61000-6-4, EN 61000-6-2)
*1：使用 L 型支架时：IP54(IEC60529) / NEMA TYPE 4X,13 *2：取决于 DIP 开关设置
