IO-Link Signal Tower
LR6-IL
IO-Link Signal Tower
Standardize your signaling interface. The PATLITE IO-Link Signal Tower installs and configures seamlessly through your IO-Link interface. IO-Link is a standardized IO technology (IEC 61131-9); fieldbus-neutral, point-to-point communication, universal interface.

特点



  • Seamlessly integrates with IO-Link masters. Learn more about IO-Link at io-link.com.

  • Built-in 5-pin M12 connector for quick and easy installations.

  • Select any combination of solid colors, multi-color, and clear globe LED units.

  • Audible alarm with built-in flashing function and Wireless Data Acquisition System are available as options.

  • A modular body construction makes configuring LED units and optional parts easy.









Specifications

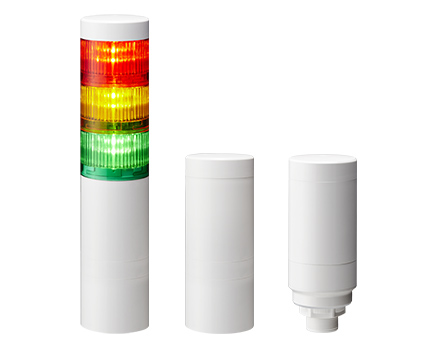

Model CodePre-assembled Model
(Direct mount)
LR6-3ILWMNW-RYG
Body Unit
(Direct mount)
LR6-ILWMNW
Body Unit
(1/2” NPT pipe or direct mount)
LR6-ILWCNW
Size60mm
TierLED Unit: Max. 5 tiers and one buzzer Unit
LED UnitsRed / Amber / Green
(Adding or changing LED units is possible)
Sold SeparatelySold Separately
Light controlContinuous / Flashing
Alarm Sound PressureTyp. 84dB (Use LR6-BW)
Alarm Sound Selection4 types (Selectable) (Use LR6-BW)
Protection RatingIP65
WiringM12 Connector 5 pins
