信号灯
SL08/SL10/SL15

  • 输入输出控制
  • Φ80
  • Φ100
  • Φ150
  • 警示灯
  • 常亮
  • 闪烁
  • 爆闪
  • 蜂鸣
  • 86dB
  • 88dB
  • 室内
  • 室外
  • IP23
  • IP65
  • IP66
  • 绿
  • 信号灯 SL08/SL10/SL15
  • 高可视性

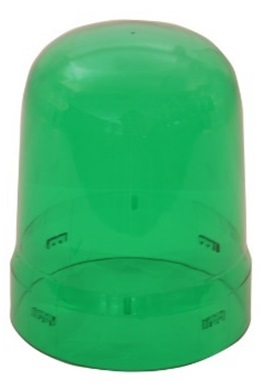

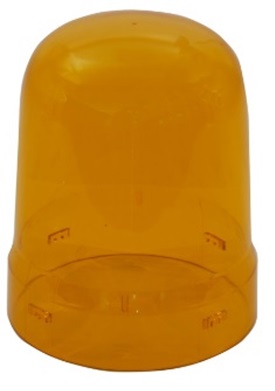

    新开发的菲涅尔透镜灯罩可使整灯包括灯顶也发光均匀,所以即使安装在天花板也可以保持高可视度。
    与竞争对手产品相比,SL型号拥有更宽的发光面,发光强度是其5倍以上。
  • 轻松安装

    IP66等级(接线端子类型)

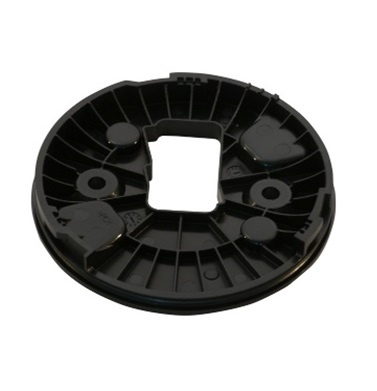

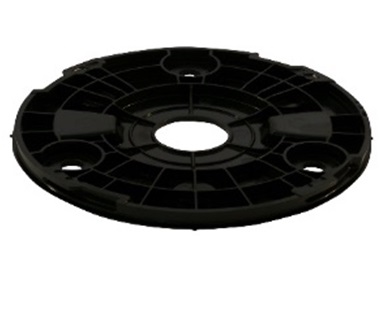

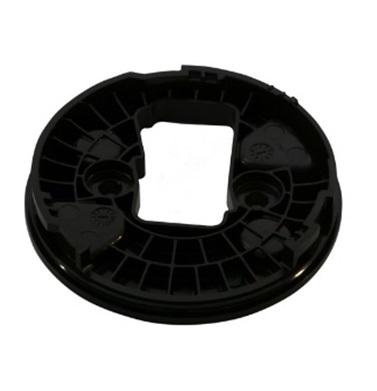

    (1) 取下安装底座
    (2) 将电线连接到接线端子
    (3) 将主体安装到安装底座上
    (4) 锁定灯体

灯光模式视频

»[视频]单击此处查看SL系列3图案灯。

应用案例


与紧急通知按钮联动发出警报。通过声光向周围乘客警告火车驶近或其他异常情况的发生。

对控制面板的异常发出警报。通过不同的亮灯模式以区分不同异常等级。

向室外告知店内异常情况。安装在店门口的天花板上,即使是远距离也可及时发现警报。

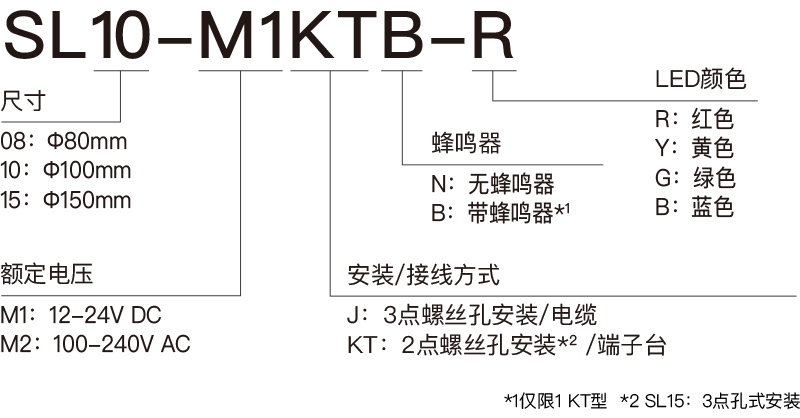

型号配置
