无线数据采集系统 - WD PRO信号接收器
WDR-LE-Z2-PRO

WDR-LE-Z2-PRO(WD PRO信号接收器)是PATLITE无线数据采集系统的信号接收器部分。该无线数据采集系统可以实时地无线获取所连接信号灯以及蜂鸣器的状态信息,并以CSV文件输出,进行分析,以提高OEE和生产效率。 WD PRO信号接收器是旧型信号接收器的增强版,并支持多种通信协议,可轻松地与主机系统或工作场所的其他设备进行通信。

  • 无线产品
  • 无线(Zigbee)
  • 室内
  • IP20
  • 无线数据采集系统 - WD PRO信号接收器 WDR-LE-Z2-PRO
  • PoE功能
     WD PRO信号接收器可以仅通过单根以太网电缆连接电源,访问数据,从而可以最大程度地减少布线空间和成本。
  • 安装支架
     WD PRO信号接收器只需将主体卡到托架上即可安装。 这样可以轻松进行安装和拆卸,并支持多种角度安装。
  • 无线信号诊断功能
     WD PRO信号接收器能够跟踪检测信号接收器和与其连接的信号发送器之间的无线信号质量。
     每次诊断以10分钟为间隔,最多可以收集72小时的诊断结果。
     诊断结果分为5级,用户可根据诊断结果判断是否需要改善或更换安装环境。
     通过设置界面可以轻松地在计算机上查看收集的数据。
  • Andon显示
     可以通过设置界面实时将所有连接的信号灯以及蜂鸣器状态信息显示在计算机屏幕上,且可以同时完成CSV数据收集。
  • 通讯功能
     除了简单的SOCKET协议之外,WD PRO信号接收器还可通过Modbus / TCP和SQL数据库进行通讯。



产品规格

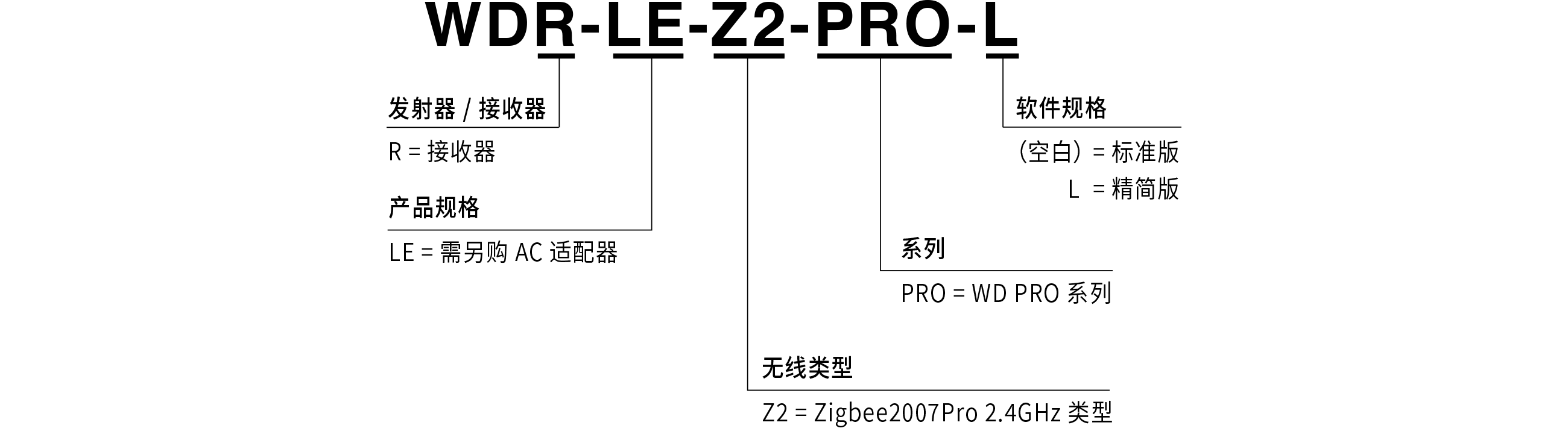

型号 WD PRO信号接收器
WDR-LE-Z2-PRO
WD PRO信号接收器(Lite版)
WDR-LE-Z2-PRO-L
电源输入 DC24V / USB总线电源/ PoE
安装方式 水平安装安装,壁挂安装,天花板安装
LAN通讯方式 10BASE-T / 100BASE-TX / 1000BASE-T
信号发送器连接台数 1台信号接收器最多连接30台设备
无线信号传输范围 无障碍情况下约30m(参考值)*1
IP地址设定 手动设置,DHCP自动设置
工作环境温度 -10~+50°C(使用AC适配器时:0°C~+40°C)
防护等级 IP20
配备无线连接诊断功能 当前诊断,长达72小时的持续诊断
信号发送器无线设置 机身内置(浏览器功能)/ 可使用WDS-WIN01 使用WDS-WIN01
host联动功能 ・CSV文件*使用WDS-WIN01・SOCKET通信(WDR方式)・·SOCKET通信(WDR PRO方式)・数据库连接(MySQL)・·Modbus / TCP通信 WD-PRO ・CSV文件*使用WDS-WIN01・通信连接(WDR方式)
检查信号灯状态功能 ×

※1 由于无线电波的特性,数值是参考值。
