语音网络控制信号灯
NHV4 / NHV6

通过声光警报对系统以及联网设备的状态信息进行及时的告知。 支持文本转语音功能,可将文本数据转换为语音消息。

  • 网络产品
  • Ethernet
  • 输入输出控制
  • 多层警示灯
  • Φ40:NHV4
  • Φ60:NHV6
  • 常亮
  • 闪烁
  • 蜂鸣
  • 报时
  • 语音
  • 88dB
  • 室内
  • IP20
  • 绿
  • 语音网络控制信号灯 NHV4 / NHV6

【软件】

  • 支持各种网络协议。
    即时以灯光、声音、语音的方式对系统以及联网设备的状态信息进行告知。
  • 支持 HTTPS、SNMP v3、SSH 等安全协议。 实现安心,安全的通讯。
  • 本产品配备了”文本转换语音(TTS)“功能。
    可将文本信息转换为语音消息并录入语音频道,并使用指令实时播放语音通知。 *仅限日语/英语
  • 除了 PING 监控的死/活监控外,还配备了 SNMP 设备监控功能。
    主动获取联网设备的MIB信息,并在满足设定条件时,立即通过灯光和声音通知管理员。
  • 邮件接收检测
    NHV通过访问邮箱服务器,在接收到符合条件设定的邮件时通过灯光,声音进行提示。
    NHV 能够语音朗读检测到的电子邮件的内容。(仅限日语/英语/中文)
  • 电子邮件检测和云控制功能需要 NHV 连接网络。
    在 NHV 设置页面可轻松一键查询网络连接状态。
  • 我们开发了“电子邮件检测设置应用程序”,用户只需按照显示的步骤输入数据即可完成电子邮件设置。(文件下载
  • PLC联动功能
    NHV 能够直接与 PLC 连接并获取数据,高效对生产现场的异常情况进行警报。(适配使用MC协议的三菱PLC和使用FINS协议的欧姆龙PLC)

【硬件】

  • 语音通知。
    通过预设信息以及输入设置,传达更为详细精准的信息。
  • 本产品可以通过输出端口与广播设备(如 PA 系统、功放器或扬声器等)连接,用以室内广播语音信息。
  • 4 路数字输入和 2 路数字输出。(仅限 NHV-D/NHV-DP)
  • 支持PoE供电(仅限NHV-DP)

【产品特点】

NHV
(标准型号)

NHV系列基础型号。
高网络安全性
NHV-D
(D 型号)

在标准型号NHV的基础上增加了4路数字输入以及2路数字输出。
可以轻松连接各种数字设备。
NHV-DP

(DP 型号)



在NHV-D的基础上增加了PoE供电功能。
支持PoE供电,减少布线工程。
(符合 IEEE802.3at)



产品型号 NHV NHV-D NHV-DP
亮度调整
云控制
发送 HTTP
音频播放 (MP3)
TTS(文本转换语音)
数字输入输出(4 路输入/2 路输出)
PoE 供电*IEEE802.3at
邮件检测




【多种安装方式】

 多种安装支架可供选购
  壁挂支架; :NH-001
  隔板安装支架:NH-002

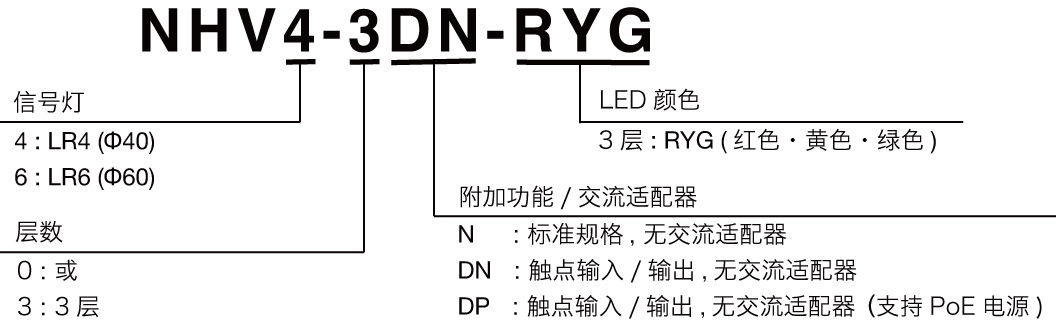

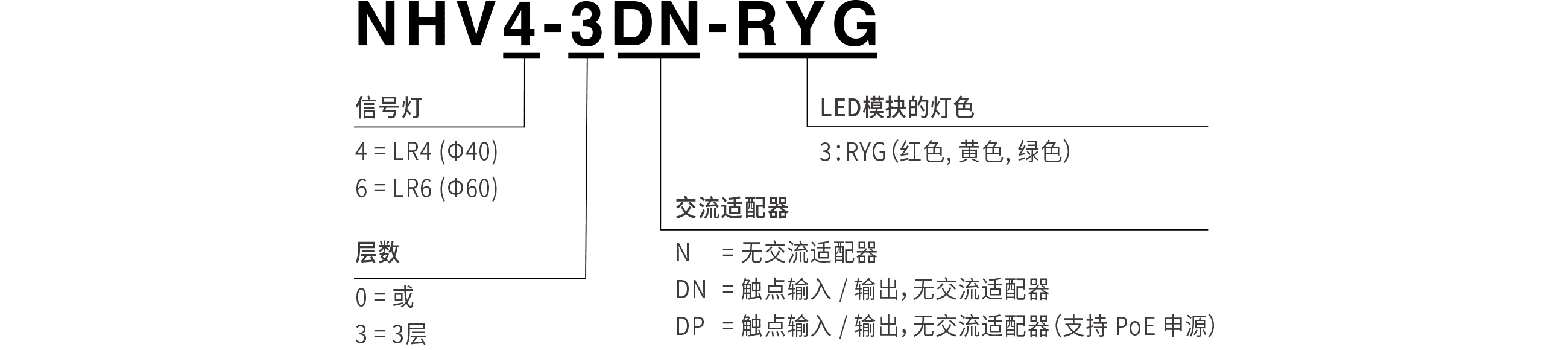

型号配置


Model Number Configuration
