网络控制信号灯
NHB4 / NHB6

通过声光警报对系统以及联网设备的状态信息进行及时的告知。

  • 网络产品
  • Ethernet
  • 多层警示灯
  • Φ40
  • Φ60
  • 常亮
  • 闪烁
  • 蜂鸣
  • 80dB
  • 室内
  • IP20
  • 绿
  • 网络控制信号灯 NHB4 / NHB6

【软件】

  • 支持各种网络协议。
    通过声光警报对系统以及联网设备的异常状态进行及时的告知。
  • 支持 HTTPS、SNMP v3、SSH 等安全协议。 实现安心,安全的通讯。
  • 除了 PING 监控功能外,还配备了 SNMP 设备监控功能。
    主动获取联网设备的MIB信息,并在满足设定条件时,立即通过灯光和声音通知管理员。
  • 电子邮件检测和云控制功能需要 NHV 连接网络。
    在 NHB 设置页面可轻松一键查询网络连接状态。
  • PLC联动功能
    NHB 能够直接与 PLC 连接并获取数据,高效对生产现场的异常情况进行警报。(适配使用MC协议的三菱PLC和使用FINS协议的欧姆龙PLC)

【硬件】

  • 可通过蜂鸣音进行通知
    共内置5种预设蜂鸣音,可通过指令进行设置。

【多种安装方式】

 多种安装支架可供选购
  壁挂支架; :NH-001
  隔板安装支架:NH-002

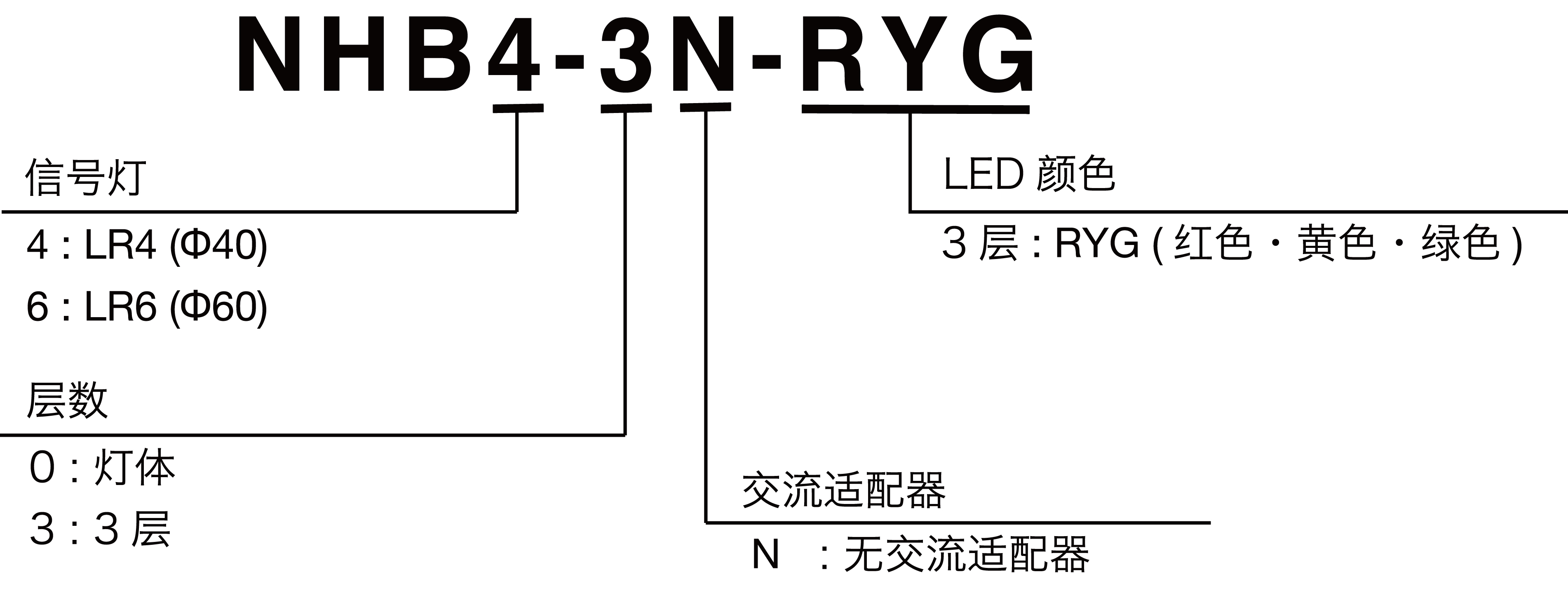

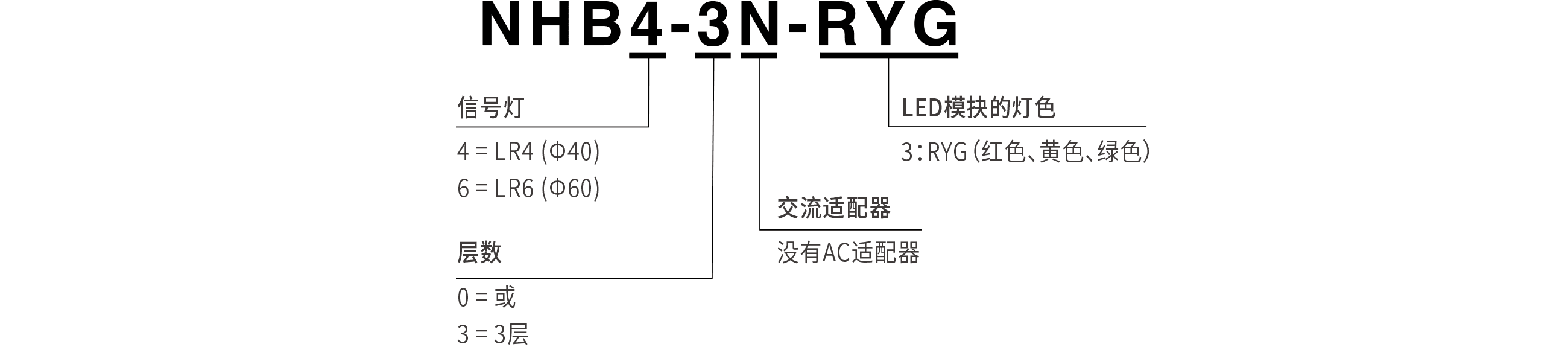

型号配置


Model Number Configuration
