信号灯
NE-A

从配备触摸传感器的型号到基础型号, 全系列56毫米直接安装信号灯

  • 输入输出控制
  • Φ56
  • 小型警示灯
  • 常亮
  • 蜂鸣
  • 88dB
  • 室内
  • IP67
  • IP65
  • 绿
  • 天蓝
  • 一灯多色
  • 信号灯 NE-A
マルチカラーモデル



【一灯多色款】
  • 有包括配备触摸传感器的型号可供选择,是派特莱首个顶部内置电容式触摸传感器的信号灯。无需开关,只要轻触亮灯状态的信号灯即可向主机发送信号。适用于作业完成的输入,呼叫管理者等操作。
  • 根据不同用途,可从7种显示颜色中选择需要的颜色。对于例如“发生异常”,“工作中”等状态,使用易联想的显示颜色可更直观迅速地判断并响应情况。
  • 使用易于区分亮灯和熄灯状态的乳白色灯罩,灯光柔和且均匀。

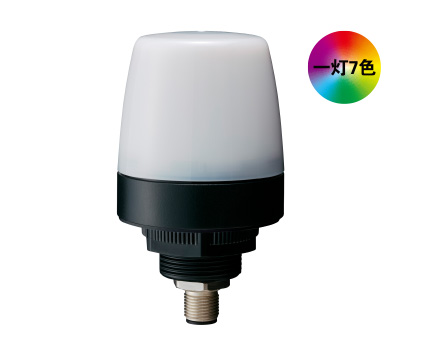

  • M12接口,易于安装-节省工时



単色モデル



【单色款】
  • 本产品采用新开发的反射镜,实现独特的照明方式。以更加闪亮且清晰的灯光显示信号。
  • 使用无螺钉接线端子台,无需螺丝固定即可牢固且轻松地接线。有效减少接线工时和接线错误。



型号 · 规格

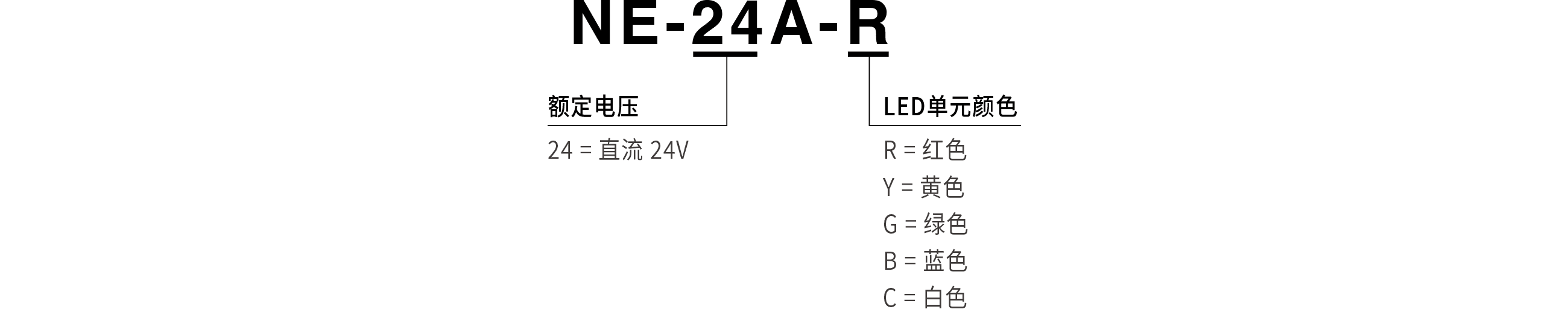

Model NE-24A-□
□:R/Y/G/B/C

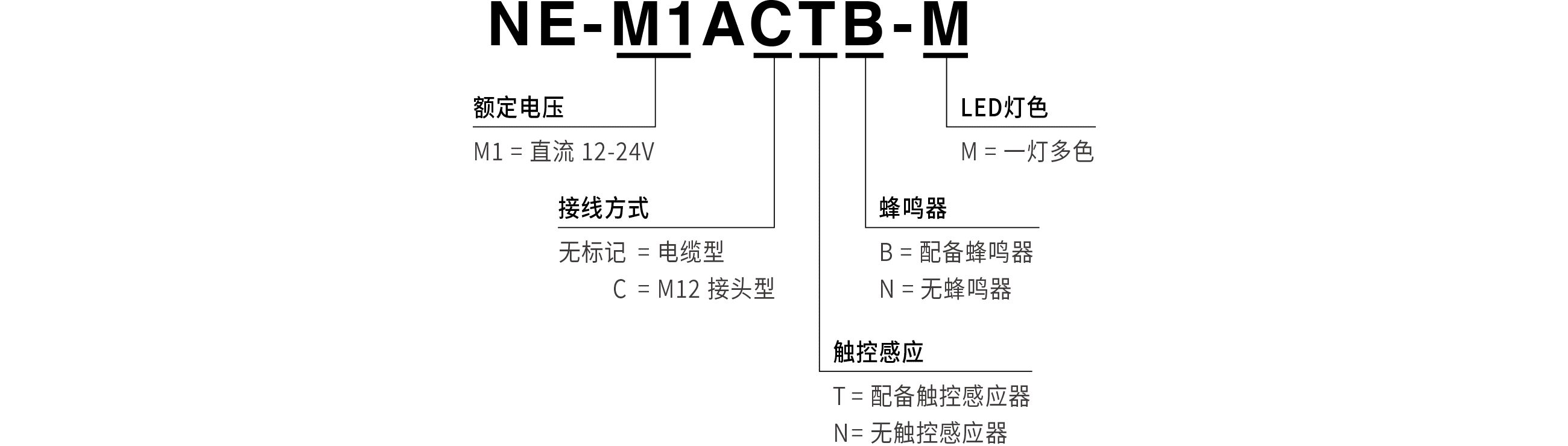

NE-M1ANN-M NE-M1ANB-M NE-M1ATB-M NE-M1ACNB-M
直径 Φ56mm
额定电压 24V DC 直流 12-24V
安装位置 室内
安装方向 所有方向
防护等级 IP65
NEMA TYPE 4X, 13
IP67
NEMA TYPE 4X, 13
IP65
NEMA TYPE 4X, 13
LED颜色 红色 / 黄色 / 白色 /
蓝色 / 白色
一灯多色( 红色 / 黄色 / 绿色 / 蓝色 / 白色 / 浅蓝色 / 紫色 )
声压 - 88dB
间歇性或连续性
亮灯模式 常亮 常亮/闪烁 常亮 / 触控感应 常亮
接线方式 接线端子 电线 (2m) M12接口
