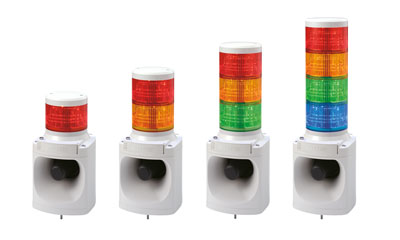

系列可录制声光一体信号灯
LKEH-FV

大音量播放器可实现自动化控制31路输出播放, 拥有多层信号灯的视觉提示,声光具备,设计美观

  • 输入输出控制
  • 多层警示灯
  • Φ100
  • 常亮
  • 闪烁
  • 声光一体警示灯
  • 语音
  • 105dB
  • 室内
  • IP53
  • 绿
  • 系列可录制声光一体信号灯 LKEH-FV

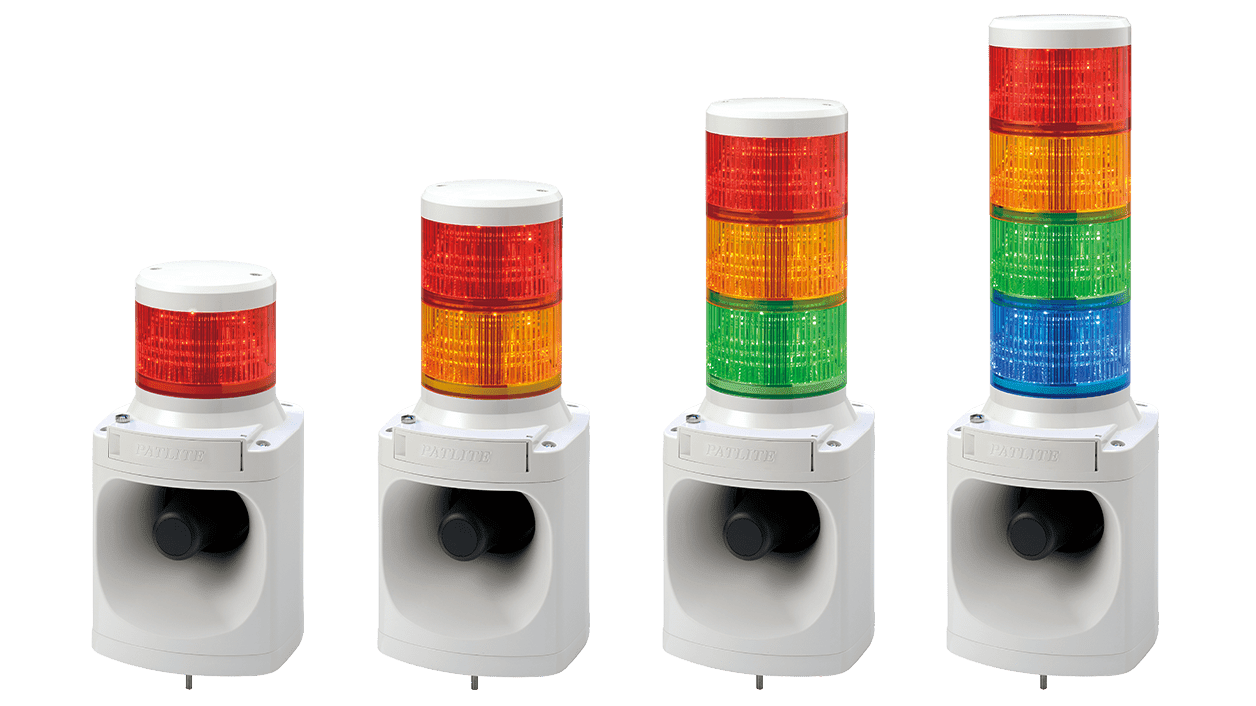

采用高亮度LED和大音量喇叭的声光一体多层信号灯 使用高亮度LED大直径信号灯和大音量喇叭,提高了远距离可视性和嘈杂环境下的清晰提示。 超过2G的防振设计标准,即使是在经常振动的使用环境下也可放心使用。 信号灯和喇叭使用同一根线控制。 LKEH-FV提供SD卡编录功能,随时随地可改变播放内容(SD卡需另外购买,格式化系统必须为FAT12或FAT16)。 LKEH-FV可存储播放的最大容量:接点输入为5个频道,二进制输入为31个频道,合计63秒(64kit/s)。 根据不同的用途与环境,音量可在0到105分贝之间调节。·LED灯罩表面光滑,有效防止了表面污垢与灰尘的沉积。 可发出的信号颜色:红色,黄色,绿色,蓝色。 可订制的特殊型号(详细信息敬请咨询) 标准设计为NPN对应电路,同时拥有PNP对应的型号。 AC120V电压规格。

(*)本网站上数据的下载服务被认为已同意以下“”。

(*)本网站上数据的下载服务被认为已同意以下“”。

LKEH-FV  

LKEH-FV  

更换零件

分类 No. 名称 零件编号 数量 规格 更换的大致时间

																顶盖
B32310054-F1 1

																LED模块:红色
B72100151-1F1 1~4: 随层数变化

																LED模块:黄色
B72100151-2F1 1~4: 随层数变化

																LED模块:绿色
B72100151-3F1 1~4: 随层数变化

																LED模块:蓝色
B72100151-4F1 1~4: 随层数变化

																LED模块:白色
B72100151-7F1 1~4: 随层数变化

																LKEH 中心螺杆:1层 (2件)
B62910033-1F2 2

中心螺杆:1层,附垫片以及垫圈 〔各2件〕。M4×87mm。


																LKEH 中心螺杆:2层 (2件)
B62910033-2F2 2

中心螺杆:2层,附垫片以及垫圈 〔各2件〕。M4×147mm。


																LKEH 中心螺杆:3层 (2件)
B62910033-3F2 2

中心螺杆:3层,附垫片以及垫圈 〔各2件〕。M4×207mm。


																LKEH 中心螺杆:4层 (2件)
B62910033-4F2 2

中心螺杆:4层,附垫片以及垫圈 〔各2件〕。M4×267mm。


																前盖
C21100087-F1 1
