50mm LED多层警示灯
LR5

高亮度,大音量,操作简单,可应对众多生产环境的多层警示灯

  • 输入输出控制
  • 多层警示灯
  • Φ50
  • 常亮
  • 闪烁
  • 蜂鸣
  • 85dB
  • 室内
  • IP65
  • IP54
  • 绿
  • 50mm LED多层警示灯 LR5
  • 重新设计的镜头和改进的模块结构提供更加明亮的灯光效果,能够看清更远处。
  • 重新工程设计的全封闭声音模块,具有良好的防水防尘功能,同时还能产生宏亮, 全向声音。(LR5 DC12V:80dB LR4 & LR5:85dB, LR6:88dB, LR7:90dB - 1m 时)
  • 一个模块化的“扭锁”设计,可以轻松定制和现场配置 LED 和声音模块。
  • 光滑的外形和强固式机身结构,在恶劣的环境中提供出色的性能,拥有IP65防护等级。
  • 标准机身颜色:纯白色。银色和黑色机身仅作为部件提供(仅限 DC24V)。
  • 带接线盒的机身单元,可作为纯白色, 银色或黑色部件提供(仅限 LR5-WT 和 LR5-KT–DC24V)。

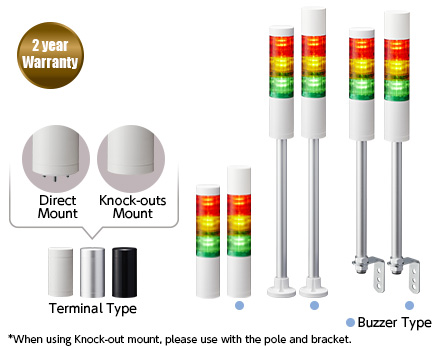

  • 四种安装选项:直接安装, 杆柱配L形支架, 杆柱配圆形支架, 杆柱配折叠支架(仅限纯白色)。
  • 备有 DC12V 和 DC24V 两款。

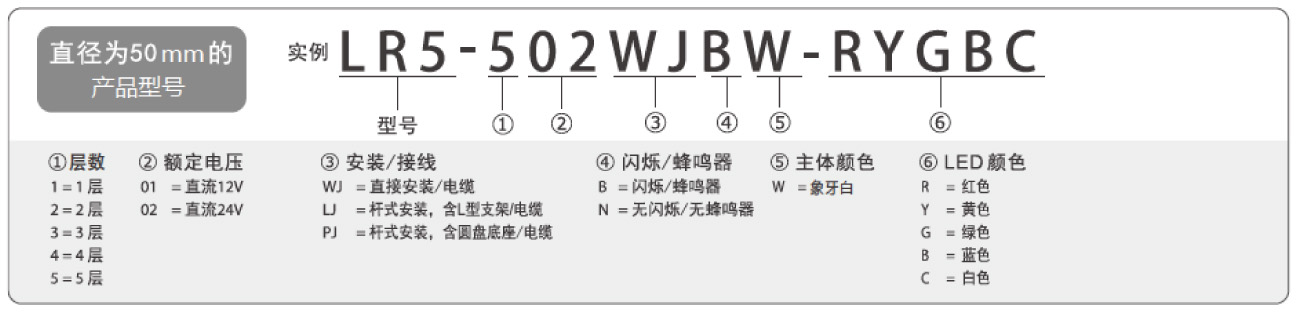

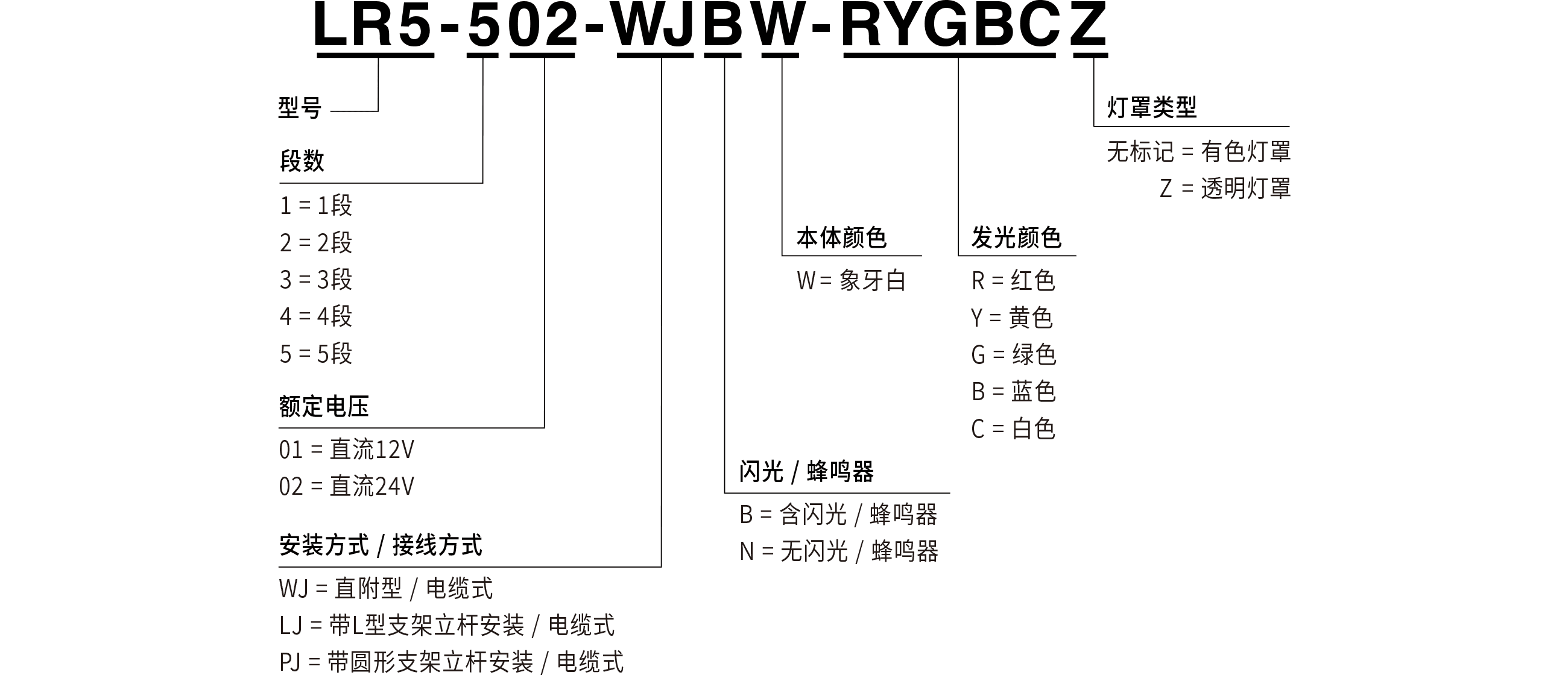

型号代码



规格

工作环境温度 -20℃ - +50℃
操作湿度范围 90% RH 或更小,无冷凝
存储温度范围 -30℃ - +60℃
存储湿度范围 90% RH 或更小,无冷凝
安装位置 室内使用
安装方向 直立位置
防护等级*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
环境条件 直立位置
绝缘电阻 电源输入引线与机箱之间 DC500V 时大于 1MΩ
耐受电压 端子与机箱之间 AC 500V 1 分钟,不破坏绝缘(M2:AC1500V 1分钟)
闪光速度 60±2次闪光/分钟
声级 LR5典型85dB  LR5 DC12V典型80dB
减低噪音*2 ab.-10dB 减低
环境条件 蜂鸣器在距离1米处从各个方向发出第 4(掠过)声音
蜂鸣器声音 4 种模式*2第 1快速间歇声音 第 2连续声音 第 3快速高低音 第 4掠过声音
晶体管输出 NPN / PNP
符合性标准 ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS 指令 (EN IEC 63000)
●EMC 指令 (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3

*1:LJ 类型是 IP54   *2:取决于 DIP 开关设置   *3:KT 和 M2 LJ 类型除外



LED 单元规格

颜色 红色 琥珀色 绿色 蓝色 白色
电流消耗/功率消耗 典型 0.04A/1W
最大 0.045A/1.3W



蜂鸣器单元规格

电流消耗/功率消耗 典型 0.04A/1W
最大 0.3A/1.3W
