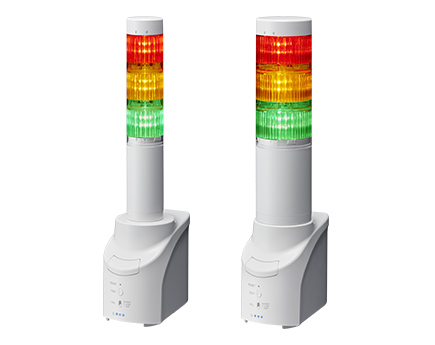

网络监控信号灯
NHL-3FB2/NHP-3FB2
网络监控信号灯
The NH Series has a three-tiered signal tower with a buzzer and E-mail sending capability to report to a network manager immediately when a network event occurs via network connection.

特点

Correspond to SNMP Protocol
• Cooperate with various kinds of network devices that support SNMP protocol
• Possible to send SNMP Trap Exclusive MIB loaded
• Network Monitor Signal Tower loads the exclusive MIB to control itself with SNMP Ping Monitoring
• Monitor the health of (up to) 16 network devices using Ping Corresponds to RSH Command
• Warning light, flashing, buzzer can be easily activated by RSH command Prevent unauthorized access and information leakage
• By cooperating with an Asset Management Software, warning light, flashing and buzzer can be activated as warning when
unauthorized access is attempted

Movie

型号・规格

尺寸 - Tower diameter: 60mm (NHL), 40mm (NHP)
额定电压 24V DC (AC Adaptor 100V AC ~ 240V AC)
支持的网络协议 - Physical Layer: 10 BASE-T/100 BASE-TX
- Data Link Layer: CSMA/CD
- Network Layer: IP/ICMP/ARP
- Physical Layer: 10 BASE-T/100 BASE-TX
- Data Link Layer: CSMA/CD
- Network Layer: IP/ICMP/ARP
- Transport Layer: TCP/UDP
- Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP
功能 - Ping Device Monitor
- RSH Command
- SNMP v1・v2
- Self-diagnosis
- Application Monitor
- SOCKET
- E-mail Transmission
层数 - 3 tiers only
模块颜色 - LED source Color: Red / Amber / Green (only)
- Lens Color: clear Lens
蜂鸣器类型 - Alarm 1: selectable, Slow Intermittent
- Alarm 2: selectable, Fast Intermittent
- Alarm 3: Fast Burst
- Alarm 4: Continuous
符合认证 - RoHS Directive (EN 50581)
- EMC Directive (EN 55032, EN 55024)
- FCC Part15 Subpart B Class B, ICES-003 Class B
- UL 1638, UL 464 CSA C22.2 No.205
- KC (KN 61000-6-2, KN 61000-6-4)*3
- PSE Compliant AC Adaptor

*3:Only N type and W type
CE Marking
UL/cUL Listed
W type is an intemational model
